Shows tabular data. This is integrated with other charts so clicking on a row highlights the corresponding record in a chart.

{{display_table height="400"}}

Displays the records, one row per record, with each cell color coded based on the field value and the specified color table.

{{display_heatmap type="heatmap"  height="400"  fields=""
colorTables="temperature,blues"
colorByMins="-90,0"  colorByMaxes="45,100"
showIndex="false"  showValue="true"
showBorder="true"
cellHeight="30"
textColor="white"}}

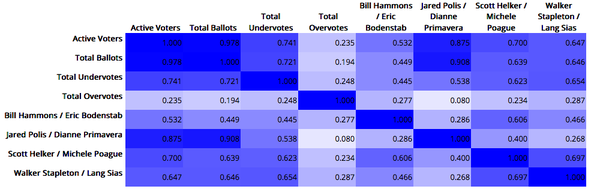

Displays a statistical correlation of a set of fields.

{{display_correlation fields=""}}

Displays the record selected in other charts.

{{display_text}}

The canvas display takes a specification of one or more glyphs which is used to create a customized display for each record.

{{display_canvas canvasHeight="100" canvasWidth="100"}}

The glyphs are specified by a set of attributes:

glyph1="<glyph type>,..."
glyph2="<glyph type>,..."
...
glyphN="<glyph type>,..."

See canvasglyphs.html for more information.

Displays a summary statistics including average, min, max, number of missing, etc. There are a number of values that are shown. To turn all of them off and only set a few set the showDefault to false.

{{display_stats loadData="false"
showDefault="true"
#showMin="true"
#showMax="true"
#showAverage="true"
#showStd="true"
#showPercentile="true"
#showCount="true"
#showTotal="true"
#showMissing="true"
#showUnique="true"
#showText="true"}}

The template display displays text based on a template populated by data. There can be a headerTemplate and footerTemplate specified that are used once. The template= attribute is used to show text for each record in the data. Not all template attributes need to be specified.

{{display_template template="..."   //Used for each record
headerTemplate="... ${totalCount} ... ${selectedCount}"  //used at the beginning
footerTemplate="... ${totalCount} ... ${selectedCount}"  //used at the end
selectField="field name to get the value to select on"  //specify a field to select on
select="max|min|<|>|=|>=|>=|contains"   //specify an operator
selectValue="some value"   //and a value
emptyMessage=""   //Message to show if nothing meets the selection criteria}}

The Dot plot requires a string value field and a numeric field. It uses the string values as the Y-axis and shows the value field along the X-axis.

{{display_dotplot fields="race,years_decimal"
xAxisTitle="Age"
marginLeft="200"
width="100%" height="300"}}

Displays flow data. The point data needs to have 2 string fields (the from and to) and a numeric value field. If doCategories is set to true then the display requires 2 string fields and a count of the unique pair values of the strings are used for the values.

{{display_sankey doCategories="true|false"
height="400"
#fields=""}}

Example

Shows a word or tag cloud of the text fields of point data. When the user clicks on a word the data that matches the word value is shown in a table. The tableFields attribute define what fields to show in the table. If combined=true then all of the selected fields are shown in one word cloud.

{{display_wordcloud fields="sex,race"
tableFields="rank,name,years,birth_place,sex,race"
combined="true|false"}}

Example

This creates a tree of the selected fields. Each row in the data is essentially converted to a "sentence", the words of which are then displayed in tree form. If a field is numeric then the data is subvidided by the numbero of buckets (the default is 10) and the "word" is the bucket range. This can be overridden with the numBuckets attribute. For a specific field append the field ID to the attribute. The bucket ranges can be specified with the buckets attribute. The text label to use can be specified with the bucketLabels attribute. The treeRoot attribute is the text used to start the tree.

{{display_wordtree treeRoot="People"
fields="years,sex,race,name"

numBuckets="number of buckets to use for all numeric fields"
numBuckets.<field id>="number of buckets to use for a specific field"

buckets="100,110,115,120,130"
bucketLabels="Young,Middle,Old,Really old"
Or:
buckets.<field id>="100,110,115,120,130"
bucketLabels.<field id>="Young,Middle,Old,Really old"

height="800px"
chartWidth="900"}}

Example

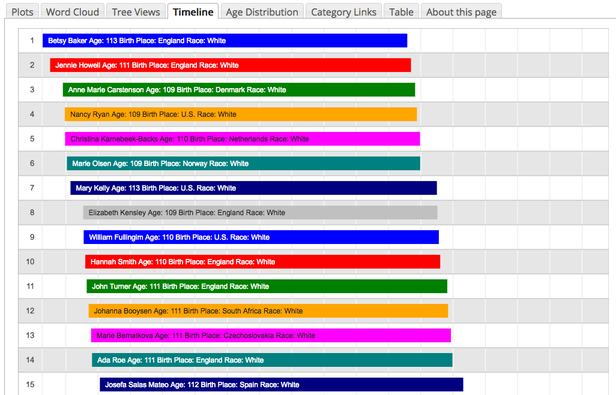

Data that has 2 date fields can be shown in a timeline. If showLabel is true then text is shown inline in the timeline bars. The fields that are shown are specified with the labelFields attribute. The labelFieldsTemplate attribute defines how the label is shown.

{{display_timelinechart fields="rank,born,died"
width="100%"  height="800"
showLabel="true"
labelFieldsTemplate="{name}  Age: {years}  Birth Place: {birth_place}  Race: {race}"
labelFields="name,race,birth_place,years"}}

Example
